2 KW Servo Motor Winch Systems for Flying Effects

It is a single drum and double drum model with high mobility, compact and high capacity and 2 different speed/force options. It is suitable for 2 different control systems in terms of software.

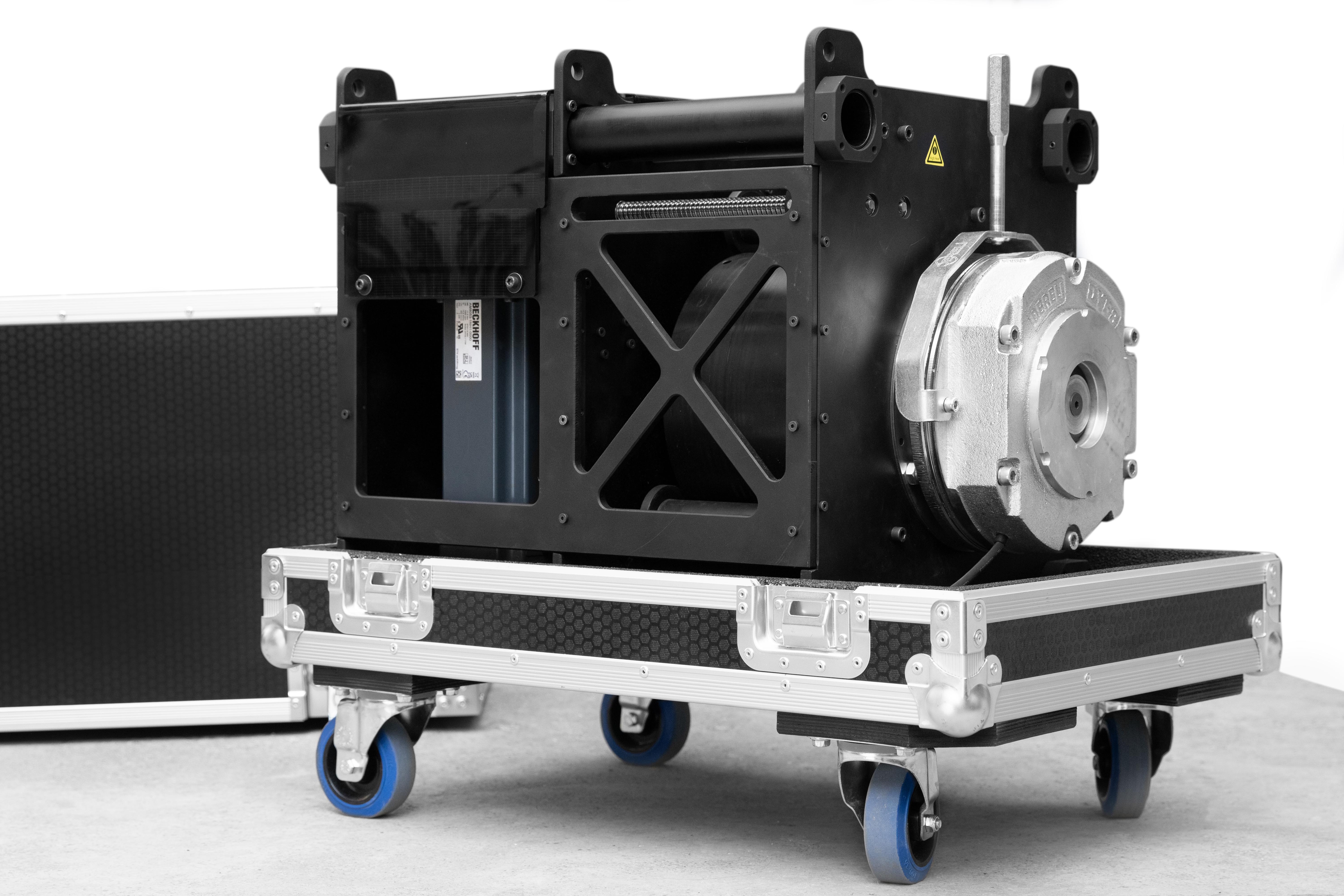

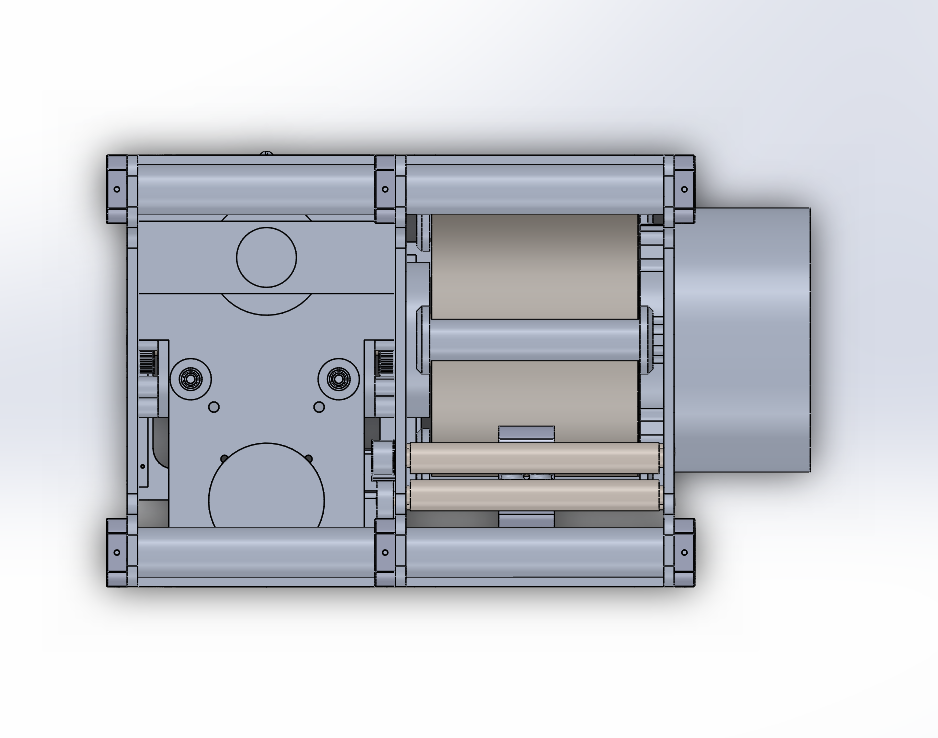

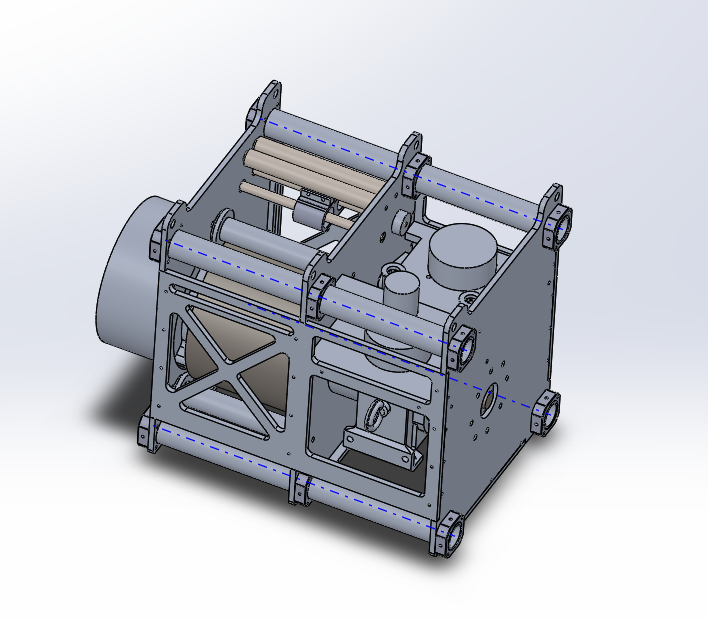

VAS 2 SD (Single Drum);

Single use and single drum model, has the possibility of fast transportation and installation in different places. It has a single drum and single rope, 200 kg lifting, 400 kg holding, 1.5 mt sec speed and 90 kg body weight and energy supply 3 phase. In addition, the system has double brake and emergency stop, lowering systems in accordance with EN 17206 standards as in other models.

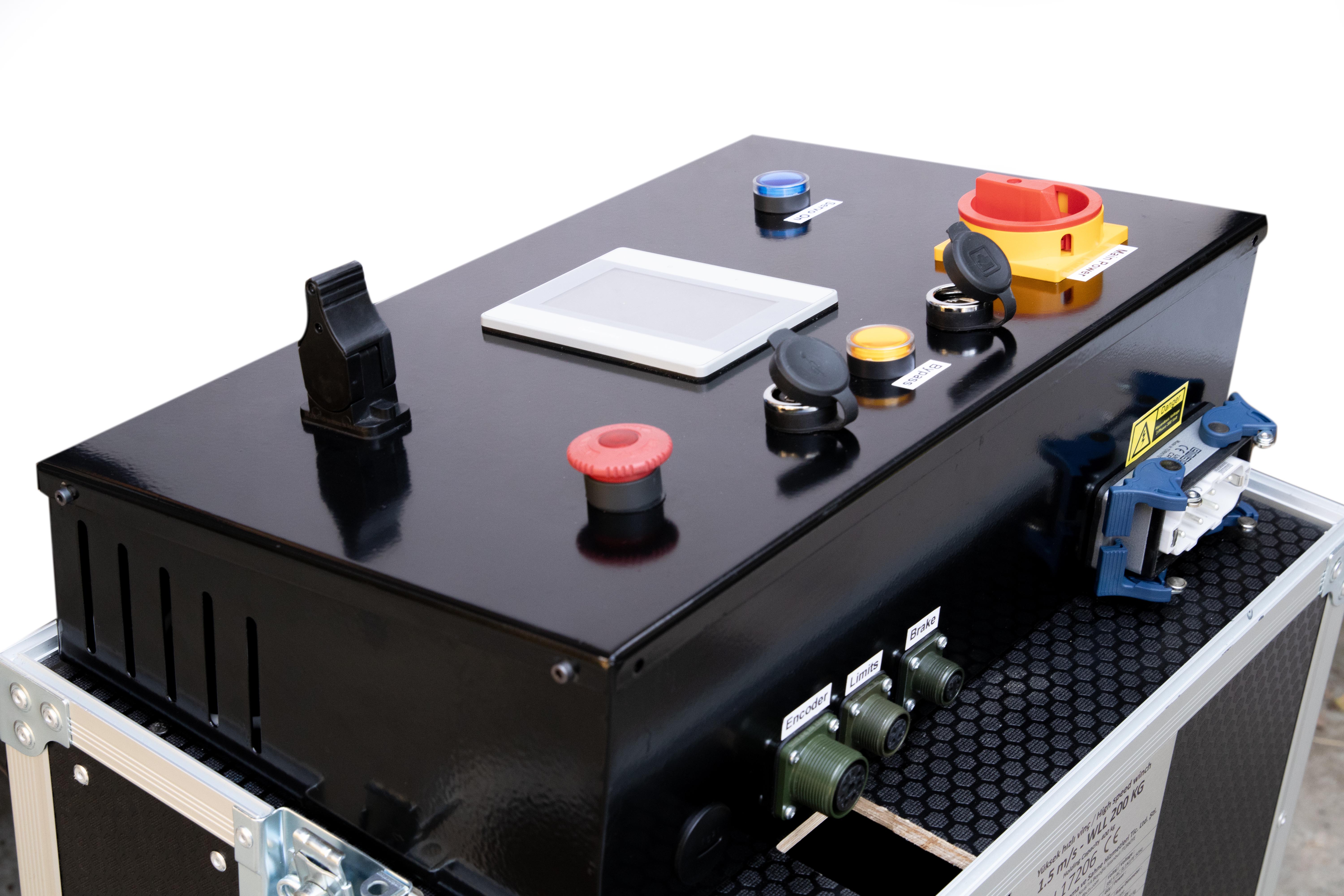

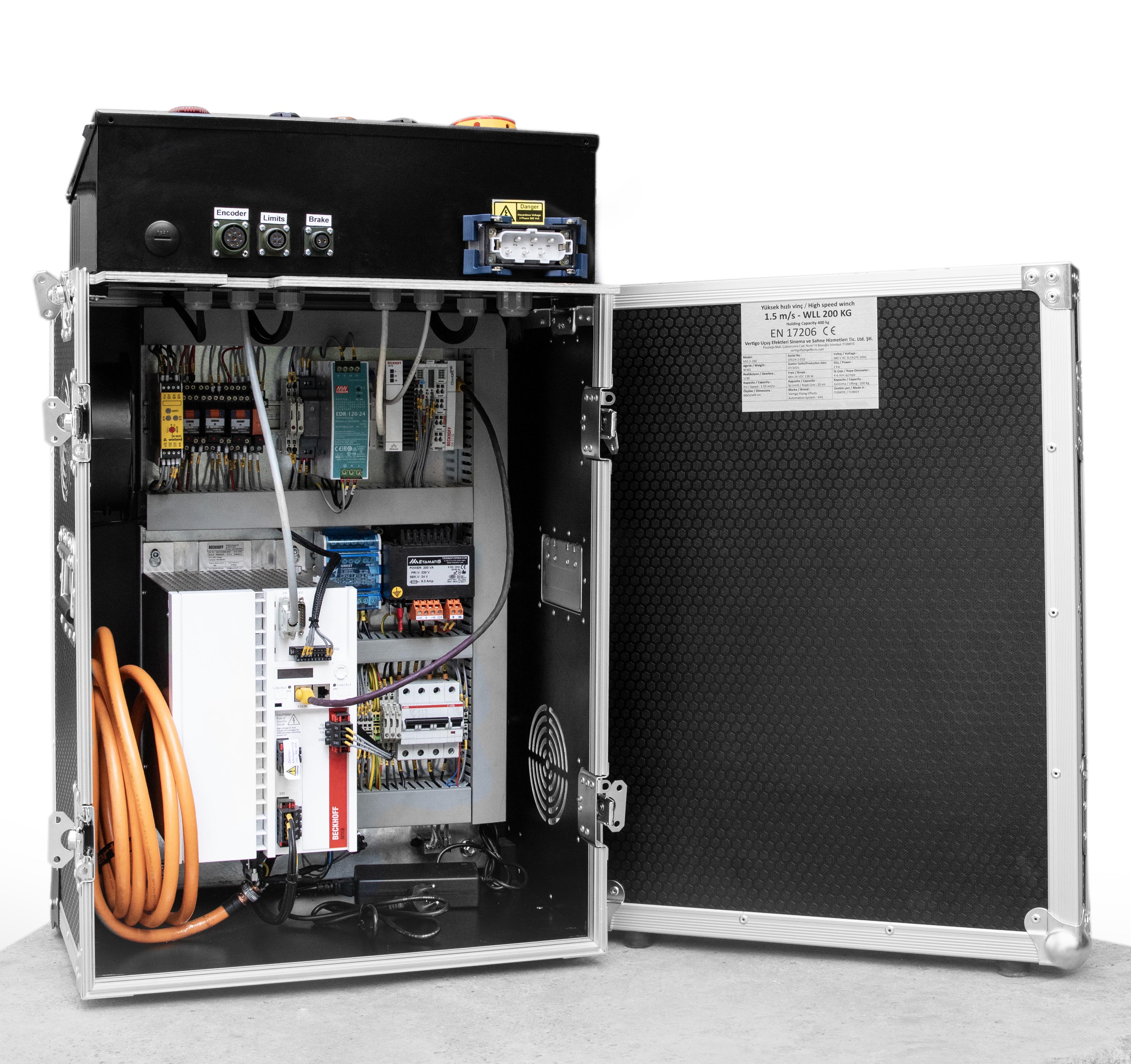

It has its own single use control system. It has the features of defining safe area and moving in the defined area with lower-upper soft limit, external hard limit, encoder features. The control system is controlled with a joystick sensitive to movement, and accelerates and decelerates according to the direction of movement in instantaneous speed changes.

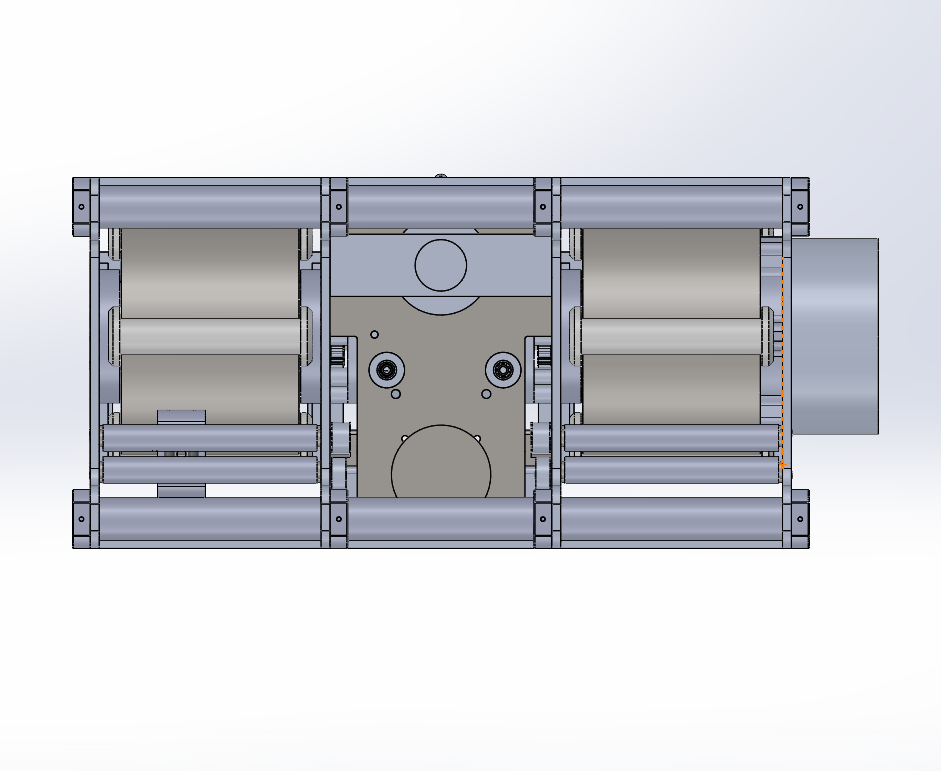

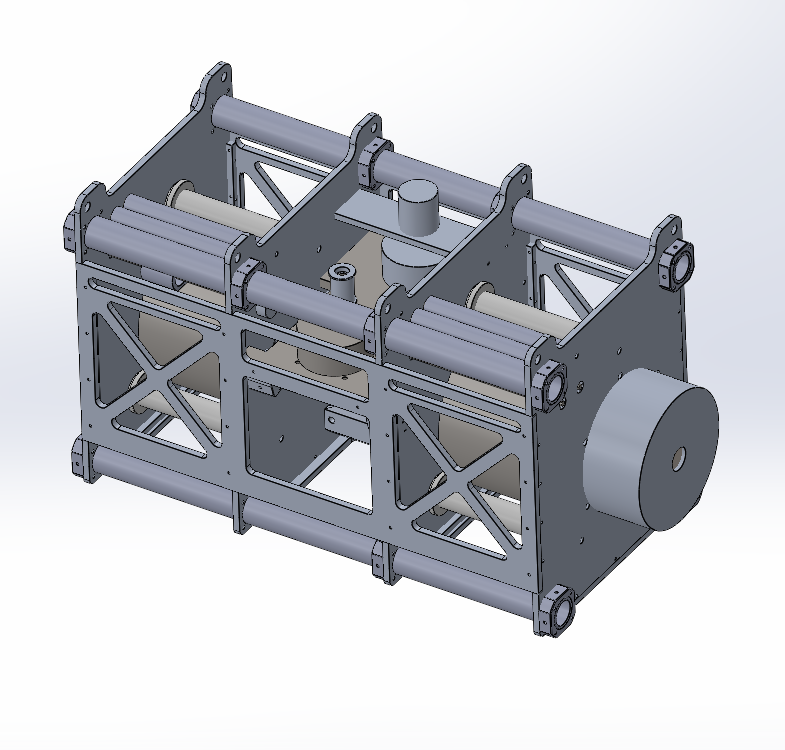

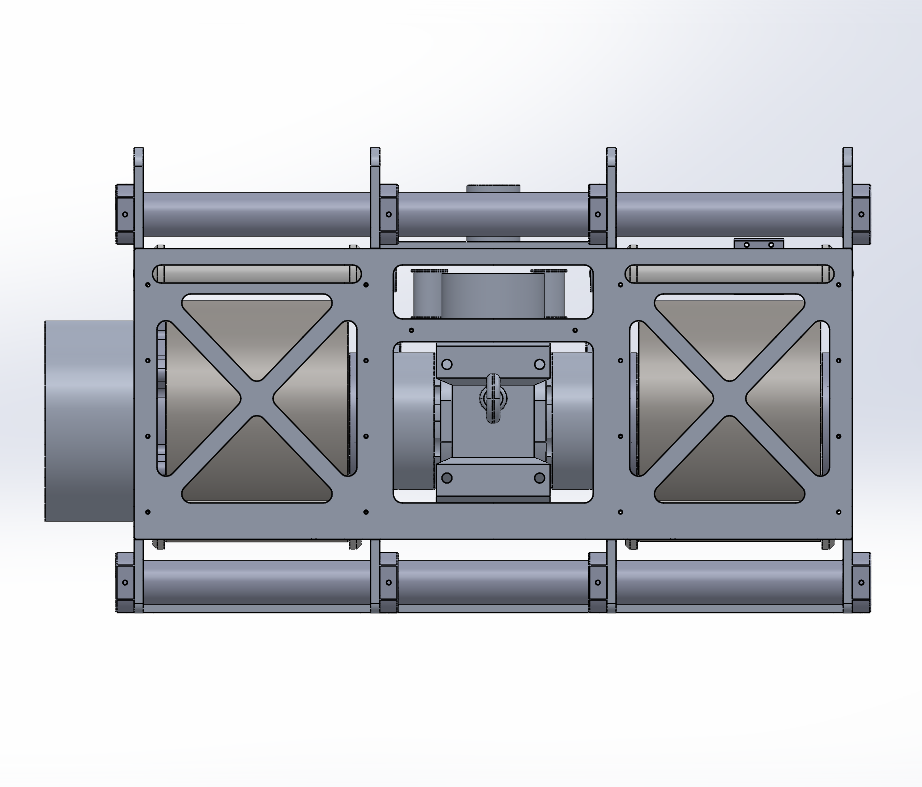

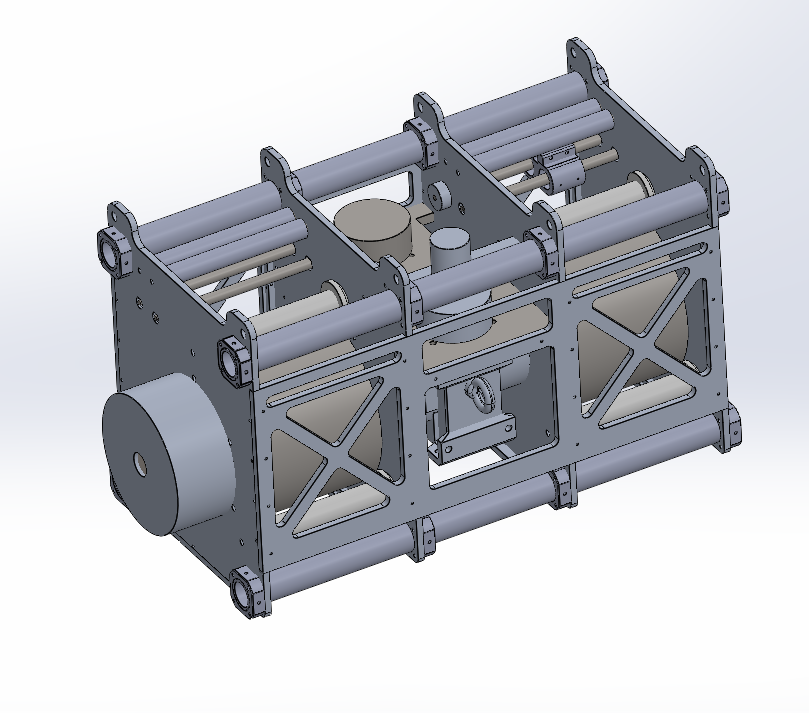

VAS 2 DD (Double Drum);

Multiple use and double drum model, has the possibility of fast transportation and installation in different places. It has a double drum and two separate ropes. The model is suitable for attachment to truss. In this way, it does not occupy any space on the ground. Thanks to the performer being on it, it has a proper stance and stability in the air with double ropes. Its capacity features are 125 kg lifting, 250 kg holding, 2.5 mt sec speed and 120 kilo body weight and energy supply 3 phase. In addition, the system has double brakes and emergency stop, lowering systems in accordance with EN 17206 standards as in other models.

The system software allows the performers to move according to the music in accordance with the dance or show prepared by making time/speed definitions for a maximum of 7 different winches.

It has the features of defining a safe area with lower-upper soft limit, external hard limit, encoder features in each mechanical equipment and moving in the defined area. The control system performs acceleration and deceleration according to the direction of movement with the software interface.
