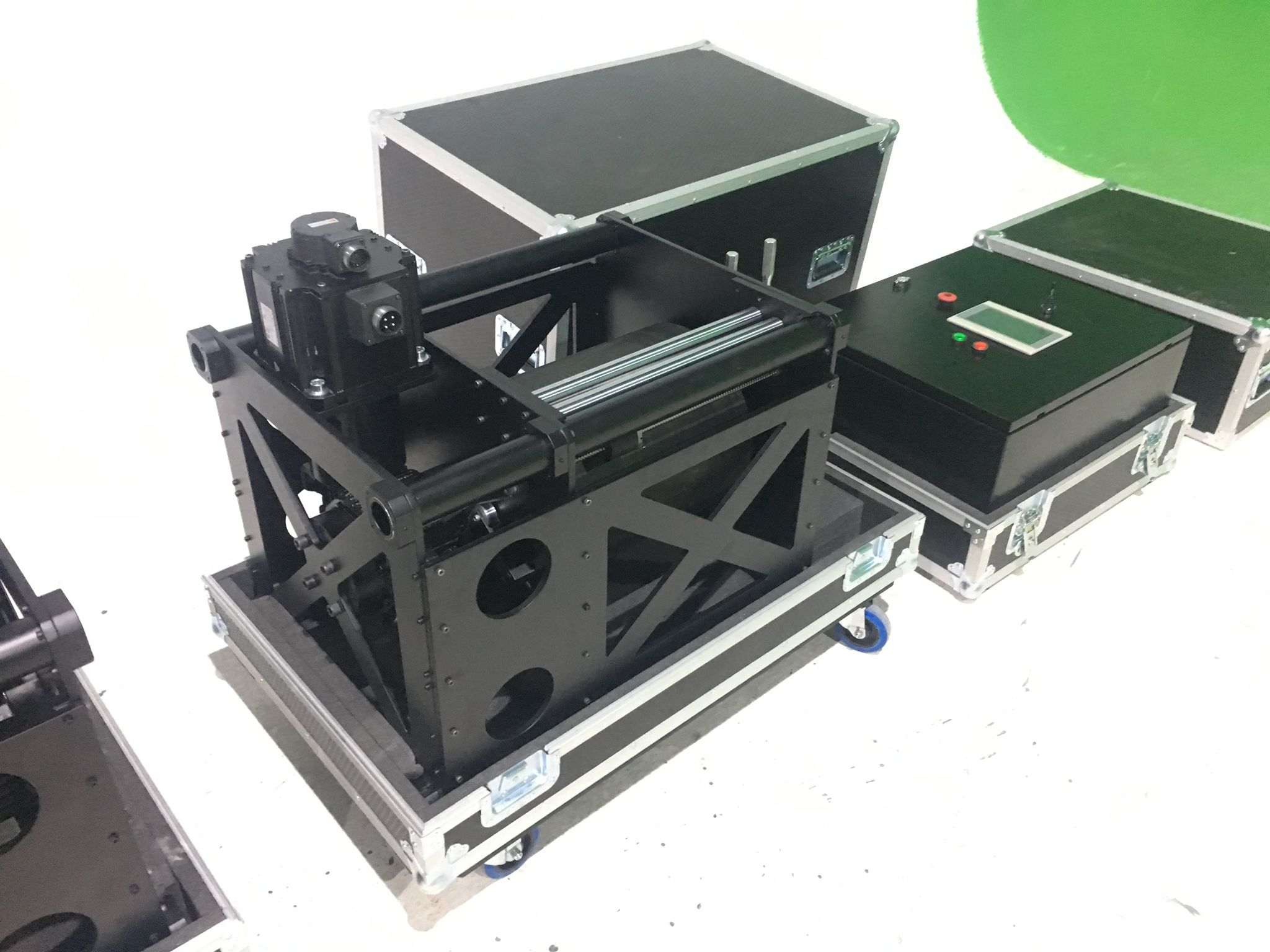

5 KW Servo Motor Winch Systems for Flying Effects

It is a single drum model with high mobility, compact and high speed. It is suitable for 2 different control systems in terms of software.

VAS 5;

Has the possibility of fast transportation and installation in different places. It has one drum and two separate ropes. The model is suitable for attachment to 52 cm truss. In this way, it does not occupy any space on the ground. Its capacity features are 120 kg lifting, 320 kg holding, 4.0 mt sec speed and 160 kilo body weight. In addition, the system has double brakes and emergency stop, lowering systems in accordance with EN 17206 standards as in other models.

The system software allows the performers to move according to the music in accordance with the dance or show prepared by making time/speed definitions for a maximum of 8 different engines or can use a single version.

It has the features of defining a safe area with lower-upper soft limit, external hard limit, encoder features in each mechanical equipment and moving in the defined area. The control system performs acceleration and deceleration according to the direction of movement with the software interface.
